Ultrasonic Welding Machine

• Accuracy
• High precision welding

• Color
• Blue & white

• Connectivity Options
• Standard power cord

• Control System
• Other, Digital control

• Cooling System
• Air cooling

• Dimension (L*W*H)
• 75cm x 65cm x 35cm

• Drive
• Pneumatic

• Features
• Customizable welding head, compact design

• Frame Type
• Bench-top

• Frequency
• 20 KHz

• Machine Type
• Spot Welder

• Model No
• SR-1000U

• Noise Level
• Low

• Operating Temperature
• 5C - 40C

• Operating Type
• Other, Manual (automatic optional)

• Power
• 1000W

• Power Rating
• 1000W

• Power Source
• Other, Electric

• Pressure
• 0.4-0.8 MPa

• Product Type
• Other, Ultrasonic Metal Spot Welding Machine

• Production Capacity
• 40 layers of copper foil / 4 pcs of 0.3mm aluminum sheet

• Surface Treatment
• Other, Painted metal casing

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Terminal, sheet, battery electrode welding; lithium battery welding

• Voltage
• 220V

• Weight (kg)
• 74

• Accuracy
• High precision welds

• Color
• Silver/Blue

• Control System
• Other, Digital Touch Interface (Chinese/English)

• Dimension (L*W*H)
• As per design

• Frequency
• 20 KHz

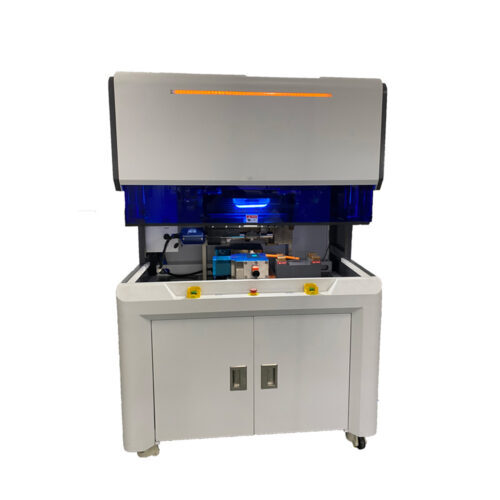

• Machine Type
• Ultrasonic Metal Welder

• Operating Type
• Manual

• Power
• 12000W

• Power Rating
• 12000W

• Power Source
• Other, Electric

• Pressure
• 0.2-0.8 MPa

• Product Type
• Other, Manual Ultrasonic Metal Welding Machine

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Copper/Aluminum wire welding (30-150mm2)

• Voltage
• 220V

• Weight (kg)
• Approx. 85 kg

• Accuracy
• High Precision

• Color
• Gray

• Control System
• Other, Digital Control

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 120*250*350(mm), 125*150*600(mm)

• Drive
• Pneumatic

• Features
• Efficient, Stable, Precise

• Frame Type
• Bench-Top

• Frequency
• 20KHz

• Lubricating System
• No lubrication required

• Machine Type
• Ultrasonic Splicing

• Model No
• SR-UW31

• Noise Level
• Low Noise

• Operating Temperature
• Standard Room Temp

• Operating Type
• Manual

• Power
• 3000W

• Power Rating
• 3000W

• Power Source
• Electric, Other

• Pressure
• 0.2-0.7 MPa

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• Up to 240 joints/hr

• Surface Treatment
• Other, Industrial Finish

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Wire Harness Splicing

• Voltage
• 220V

• Weight (kg)
• 42

• Accuracy
• High precision

• Color
• Grey, blue accents

• Connectivity Options
• Computer interface, USB (as image)

• Control System
• Other, Computer interface (Chinese/English)

• Cooling System
• Air cooling

• Dimension (L*W*H)
• as shown (refer image)

• Drive
• Electric/pneumatic

• Features
• Intelligent, programmable, safety protection

• Frame Type
• Extruded/frame steel

• Frequency
• 20 kHz

• Machine Type
• Tabletop ultrasonic welding

• Model No
• As shown in image

• Motor Power
• As shown in image

• Noise Level
• Low

• Operating Temperature
• Room temperature

• Operating Type
• Other, Computer-controlled

• Power
• 3000W

• Power Rating
• 3kW

• Power Source
• Other, 220V 50Hz

• Pressure
• min 0.65 MPa

• Product Type
• Other, Ultrasonic metal welding machine with computer & workbench

• Production Capacity
• 0.35-20 Sqmm wire range

• Surface Treatment
• Other, Coated steel

• Technology
• Other, Ultrasonic welding

• Usage & Applications
• Copper/aluminum wire welding

• Voltage
• 220V

• Weight (kg)
• as shown (refer image)

• Accuracy
• High Precision Welding

• Color
• Grey/Blue

• Connectivity Options
• USB/RS232

• Control System
• PLC Touchscreen (Chinese/English), Other

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• Approx. 8006001200 mm

• Drive
• Pneumatic

• Features
• Fast Welding, Energy Efficient

• Frame Type
• Floor Standing

• Frequency
• 20 KHz

• Lubricating System
• Maintenance Free

• Machine Type
• Wire Terminal Ultrasonic Welder

• Model No
• 6KW-UWM20KHZ

• Noise Level
• < 75 dB

• Operating Temperature
• 5C - 40C

• Operating Type
• Other, Semi-Automatic

• Power
• 6000 W

• Power Rating
• 6000 W

• Power Source
• Other, Electric

• Pressure
• 0.2-0.8 MPa

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• Up to 300 cycles/hour

• Surface Treatment
• Other, Anodized/Coated

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Copper/Aluminum Wire & Terminal Welding

• Voltage
• 220V

• Weight (kg)
• Approx. 150 kg

• Accuracy
• High Precision

• Color
• Industrial Grey

• Connectivity Options
• RS232 optional

• Control System
• Other, Microprocessor / Touch Panel

• Cooling System
• Air-cooled

• Dimension (L*W*H)
• Approx. 650*620*1300mm

• Drive
• Pneumatic

• Features
• Display with Chinese/English interface, Fast welding cycle, High repeatability, User programmable

• Frame Type
• Compact Floor Stand

• Frequency
• 20 KHz

• Machine Type
• Wire Harness Welding / Spot Welding

• Model No
• Custom (OEM/ODM Available)

• Noise Level
• Low

• Operating Temperature
• 0~50C

• Operating Type
• Automatic

• Power
• 8000W

• Power Rating
• 8000W

• Pressure
• Adjustable (Air-Driven)

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• Up to 400 cycles/hr

• Surface Treatment
• Other, Powder Coated / Painted

• Technology
• Other, Ultrasonic

• Usage & Applications
• Wire harness welding (25-70Sqmm), Spot welding, Copper/aluminum plate welding (0.1-2.5mm)

• Voltage
• 220V 50/60Hz

• Weight (kg)
• Approx. 115kg

• Accuracy
• High precision bonding

• Connectivity Options
• Manual controls

• Control System
• Other, Microcontroller

• Dimension (L*W*H)
• 460L 270W 150H mm

• Drive
• Electric

• Features
• Automatic tracking of energy, time, welding time, energy, air pressure, width, and adjustable amplitude

• Frame Type
• Tabletop

• Frequency
• 20kHz

• Machine Type
• Wire harness welder

• Noise Level
• Low

• Operating Temperature
• Room temperature

• Operating Type
• Automatic

• Power
• 4000W

• Power Rating
• 4000W

• Power Source
• Other, 220V

• Pressure
• 0.5kg air supply

• Product Type
• Other, Ultrasonic Wire Harness Welding Machine

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Aluminum sheet, nickel sheet, copper wire ultrasonic welding

• Voltage
• 220V

• Weight (kg)
• 38kg

• Accuracy
• High

• Color
• Silver/Grey

• Connectivity Options
• Chinese/English Interface

• Control System
• Other, Manual/Pneumatic

• Cooling System
• Air cooling

• Dimension (L*W*H)
• 40L*38W*14H

• Drive
• Electric/Pneumatic

• Features
• Multi-wire welding, easy operation

• Frame Type
• Bench-top

• Frequency
• 20KHz

• Machine Type
• Terminal Welding Machine

• Model No
• 3KW-UW-314

• Motor Power
• Pneumatic driven

• Noise Level
• Low

• Operating Temperature
• 0-45C

• Operating Type
• Manual

• Power
• 3000W

• Power Rating
• 3000W

• Power Source
• Other, Electric

• Pressure
• 0.2-0.8MPa

• Product Type
• Other, Ultrasonic Terminal Welding Machine

• Production Capacity
• Custom/hour (depends on operation)

• Surface Treatment
• Other, Painted metal

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Copper & Aluminum Wire Terminals

• Voltage
• 220V

• Weight (kg)
• 40

• Accuracy
• High precision welds

• Color
• Blue & Grey

• Connectivity Options
• Chinese/English interface

• Control System
• Other, Digital/Manual Switch

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• Approx. 600*400*1100 mm

• Drive
• Manual

• Features
• Adjustable welding time, dual language interface

• Frame Type
• Heavy Duty Steel

• Frequency
• 20 KHz

• Machine Type
• Manual Ultrasonic Welder

• Model No
• 3KW-ULTRA-MANUAL

• Noise Level
• <75 dB

• Operating Temperature
• 5C-40C

• Operating Type
• Other, Manual (Computer version optional)

• Power
• 3000W

• Power Rating
• 3KW

• Power Source
• Other, Electric

• Pressure
• min 0.65MPa

• Product Type
• Other, Ultrasonic Welding Machine

• Production Capacity
• 20-40 pieces/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Copper, aluminum wire welding

• Voltage
• 220V 50Hz

• Weight (kg)
• 80 kg

• Accuracy
• 0.01 mm

• Color
• Blue & Silver

• Connectivity Options
• Chinese/English panel (optional)

• Control System
• Other, Manual / Computer Version (optional)

• Cooling System
• Air cooling

• Dimension (L*W*H)
• Approx. 700 x 450 x 1100 mm

• Drive
• Pneumatic

• Features
• Energy-efficient, ergonomic, multi-language interface

• Frame Type
• Floor-standing

• Frequency
• 20 KHz

• Lubricating System
• Maintenance-free

• Machine Type
• Light-duty Cable Welder

• Model No
• 4KW-UWM

• Motor Power
• Integrated with ultrasonic system

• Noise Level
• <65 dB

• Operating Temperature
• 0-45C

• Operating Type
• Manual

• Power
• 4000 W

• Power Rating
• 4 kW

• Power Source
• Other, Electric

• Pressure
• min 0.65 MPa

• Product Type
• Other, Manual (Computer version option)

• Production Capacity
• Up to 100 welds/hour

• Technology
• Other, Ultrasonic Metal Welding

• Usage & Applications
• Automotive terminal and cable welding

• Voltage
• 220V 50Hz

• Weight (kg)
• Approx. 95 kg

• Accuracy
• High, 0.1 mm

• Color
• Grey

• Connectivity Options
• Basic; USB for computer version

• Control System
• Other, Microprocessor/Manual Controls

• Cooling System
• Air cooling

• Dimension (L*W*H)
• Approx. 610mm x 430mm x 1160mm

• Drive
• Electric

• Features
• Dual language support, fast welding

• Frame Type
• Heavy-duty frame

• Frequency
• 20 KHz

• Lubricating System
• Manual lubrication

• Machine Type
• Manual/Computer Ultrasonic Welder

• Model No
• Manufacturer specified

• Motor Power
• Servo, approx. 4000W

• Noise Level
• <75 dB

• Operating Temperature
• 5C-40C

• Operating Type
• Other, Manual (Computer version optional)

• Plastic Processed
• N/A (metal cables)

• Power
• 4000W

• Power Rating
• 4000W

• Power Source
• Other, Electric

• Pressure
• 0.2-0.8 MPa

• Product Type
• Other, Ultrasonic Wire Welding Machine

• Production Capacity
• 2-20 Sqmm cable welding

• Surface Treatment
• Other, Coated metal

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Welding copper/aluminum wires, cable manufacturing

• Voltage
• 220V 50Hz

• Weight (kg)
• Approx. 120 kg

• Accuracy
• High precision weld

• Color
• Blue & White

• Control System
• Other, Touch Panel (Chinese/English)

• Cooling System
• Air cooled

• Dimension (L*W*H)
• Approx. 540 x 500 x 1050 mm

• Drive
• Manual toggle

• Frame Type
• Compact cabinet

• Frequency
• 20 KHz

• Machine Type
• Cable Welding Equipment

• Model No
• 6KW-Ultra-MW-2024

• Noise Level
• Low

• Operating Type
• Manual

• Power
• 6000W

• Power Source
• Other, Electric

• Pressure
• 0.2-0.8 MPa

• Product Type
• Other, Manual Ultrasonic Metal Welding Machine

• Production Capacity
• 5-50 mm2 wire size

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Cable manufacturing, wire to copper/aluminum welding

• Voltage
• 220V

• Weight (kg)
• ~65 kg

• Accuracy
• 0.01 mm

• Color
• White & Blue

• Connectivity Options
• RS485, USB interface

• Control System
• Other, PLC Touch Screen

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 1400 x 900 x 1800 mm

• Drive
• Servo Drive

• Features
• Energy efficient, low maintenance, high precision, robust construction

• Frame Type
• Reinforced Steel Frame

• Frequency
• 20 KHz

• Lubricating System
• Maintenance Free

• Machine Type
• Cable Welding Machine

• Model No
• UMW-8000C

• Motor Power
• 2.2 kW

• Noise Level
• 65 dB

• Operating Temperature
• 5C to 40C

• Operating Type
• Automatic

• Power
• 8 kW

• Power Rating
• 8KW

• Power Source
• Other, Electric

• Pressure
• Adjustable up to 5000N

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• Up to 600 welds/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Cable manufacturing, metal joining, wiring harness, lithium battery tab welding

• Voltage
• 220V / 380V

• Weight (kg)
• 650 kg

• Accuracy
• High precision welds

• Color
• Blue/Grey

• Connectivity Options
• No external connectivity

• Control System
• Other, Manual Interface (Chinese/English)

• Cooling System
• Air cooled

• Dimension (L*W*H)
• Approx. 650x450x1000 mm

• Drive
• Manual

• Features
• Quick tool change, energy efficient

• Frame Type
• Bench-top

• Frequency
• 20 KHz

• Lubricating System
• None required

• Machine Type
• Light-duty Ultrasonic Welder

• Model No
• 6KW Light-duty Manual

• Noise Level
• <75 dB

• Operating Temperature
• 5C-40C

• Operating Type
• Manual

• Power
• 6000W

• Power Rating
• 6000W

• Power Source
• Other, Electric

• Pressure
• 0.2 - 0.8 MPa

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• Up to 200 cycles/hr

• Surface Treatment
• Other, Painted Steel Body

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Metal Wire, Copper/Aluminum Line Welding

• Voltage
• 220V

• Weight (kg)
• ~70 kg

• Accuracy
• High Precision Welding

• Color
• White & Blue

• Connectivity Options
• Touchscreen/Manual Control

• Control System
• Other, PLC Control Panel

• Cooling System
• Air Cooled

• Dimension (L*W*H)
• 75cm x 65cm x 35cm

• Drive
• Pneumatic Drive

• Features
• Custom welding head, fast welding

• Frame Type
• Desktop Type

• Frequency
• 20 KHz

• Machine Type
• Battery Welding Machine

• Model No
• Sinrad-UW5000

• Noise Level
• Low

• Operating Temperature
• Normal Room Temp

• Operating Type
• Other, Manual (automatic optional)

• Power
• 5000W

• Power Rating
• 5000W

• Power Source
• Other, Electric

• Pressure
• min0.65MPa

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• 80 layers copper foil

• Surface Treatment
• Other, Polished Metal

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Lithium battery nickel/copper foil welding

• Voltage
• 220V

• Weight (kg)
• 74

• Accuracy
• 0.01 mm

• Color
• Industrial Grey / Blue accents

• Connectivity Options
• USB data export, Ethernet (optional)

• Control System
• Other, PLC Touch Screen

• Cooling System
• Air & Water cooling

• Dimension (L*W*H)
• 1150 x 950 x 1660 mm

• Drive
• Servo Motor

• Features
• Energy efficient, high precision, no need for flux or filler, fast cycle time

• Frame Type
• Heavy Duty Frame

• Frequency
• 20 kHz

• Lubricating System
• Manual Lubrication

• Machine Type
• Bench-top/Stand-alone

• Model No
• UMW-6000

• Motor Power
• 0.37 kW

• Noise Level
• 65dB

• Operating Temperature
• 5C to 40C

• Operating Type
• Automatic

• Plastic Processed
• N/A (Metal welding focus)

• Power
• 6000W

• Power Rating
• 6000 Watt

• Power Source
• Other, Electric

• Pressure
• Adjustable 0.05-0.8 MPa

• Product Type
• Other, Ultrasonic Metal Welding Machine

• Production Capacity
• Up to 300 cycles/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Ultrasonic Welding

• Usage & Applications
• Copper and aluminum plate welding, battery tabs, electrical connectors

• Voltage
• 220V/380V (customizable)

• Weight (kg)
• Approx. 360 kg

• Accuracy
• 0.05mm

• Color
• Blue and silver

• Connectivity Options
• Foot pedal start

• Control System
• Other, Digital interface

• Cooling System
• Air cooled

• Dimension (L*W*H)
• 48*12*38(cm), 38*34*15(cm); 120*250*350(mm), 125*150*600(mm)

• Drive
• Electric solenoid

• Features
• Auto scan frequency, search frequency free after replace welding head

• Frame Type
• Bench mounted

• Frequency
• 20KHZ

• Machine Type
• Pipe Cutting & Sealing

• Model No
• SR-UW41

• Motor Power
• Integrated ultrasonic generator

• Noise Level
• <70 dB

• Operating Temperature
• 5-40C

• Operating Type
• Manual

• Power
• 4000W

• Power Rating
• 4000W

• Pressure
• 0.2-0.8MPa

• Product Type
• Other, Ultrasonic Welding Machine

• Production Capacity
• Up to 600 joints/day

• Surface Treatment
• Other, Powder coated body

• Technology
• Other, Ultrasonic

• Usage & Applications
• Welding

• Voltage
• 220V

• Weight (kg)
• 42
